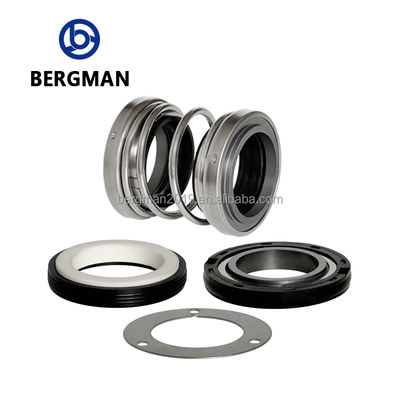

BERGMAN 560D-45mm Rotary Pump Mechanical Seal for WQ Submersible Pumps
| Place of Origin | CN:GUANGZHOU |
|---|---|
| Markenname | BERGMAN |
| Model Number | 560D |
| Minimum Order Quantity | 1 |
| Preis | $18-30 |
Treten Sie mit mir für freie Proben und Kupons in Verbindung.
whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skypen: sales10@aixton.com
Wenn Sie irgendein Interesse haben, leisten wir 24-stündige Online-Hilfe.
xProduktdetails
| Size | 45mm | Model | 560D |
|---|---|---|---|
| Pressure limit | ≤ 0.3mpa | Temperature range | -20°C-120°C |
| Line speed | ≤ 10m/s | Face material | CAR SIC |
| Seat material | CER SIC | Secondary seal | NBR VITON |
| Metal parts | SS304 SS316 | Shaft size | 25/30, 30/35, 40/45, 45/50 |
| Standard sizes | 14/15/16mm, 17/18/19mm, 20/25/30mm, 35/40/45mm, 50/60/70mm | O-ring material | NBR VITON |
| Wear-resistant materials | Tungsten carbide, silicon carbide, carbon graphite, alumina | Rubber seals | PTFE seals, O-rings |
| Application pumps | Ebara pump, Southern pump, Hejian pump, WQ submersible pump | ||
| Hervorheben | BERGMAN 560D-45mm rotary pump seal,mechanical seal for WQ submersible pumps,45mm pump seal with warranty |
||
Produkt-Beschreibung
ED 560D-45mm Facing Size EBARA Kawami WQ Submersible Pump Mechanical Seal
Product Specifications
| Attribute | Value |
|---|---|
| Size | 45mm |
| Country of Origin | Guangzhou, China |
| Brand | BERGMAN |
| Model | 560D |
| Application | Rotary Pump |
| Pressure | ≤ 0.3mpa |
| Temperature | -20°C to 70°C |
| Line Speed | ≤ 5m/s |
Product Description
The ED 560D-45mm mechanical seal is designed for EBARA pumps, Southern pumps, Hejian pumps, and most WQ submersible pumps. Manufactured by Guangzhou Bergman Mechanical Seals Co., Ltd., this high-quality seal features:
- Standard sizes available from 14mm to 70mm
- Face materials: CAR SIC and CER SIC
- Secondary seals available in NBR or VITON
- Metal parts made from SS304 or SS316
- ISO9001-2015 certified manufacturing
- OEM customization services available
Technical Specifications
Operating Conditions: Pressure ≤ 0.3mpa | Temperature -20°C to 70°C (depending on O-ring material) | Line speed ≤ 5m/s

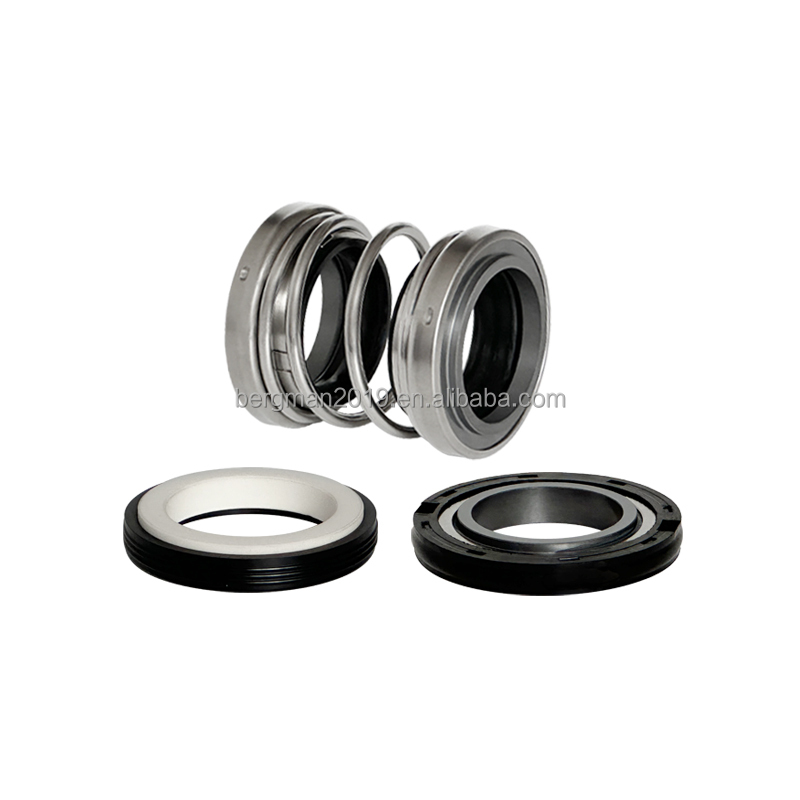

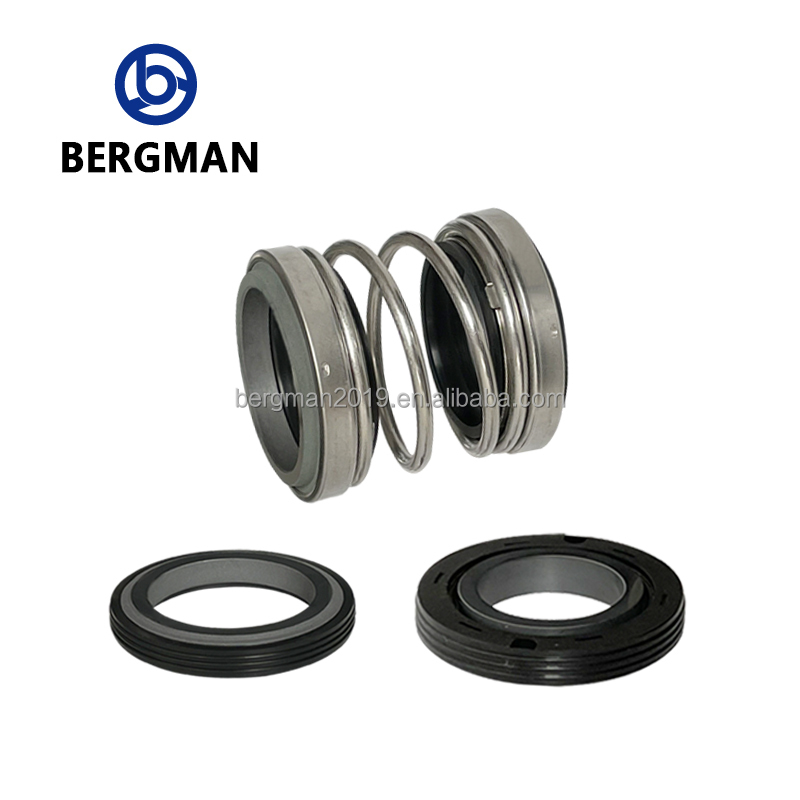

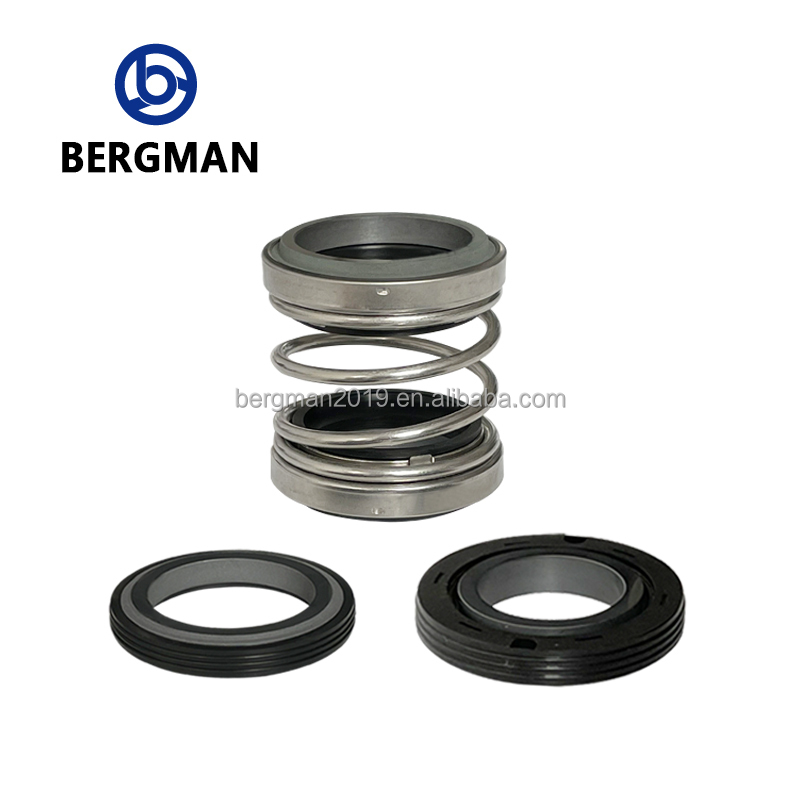

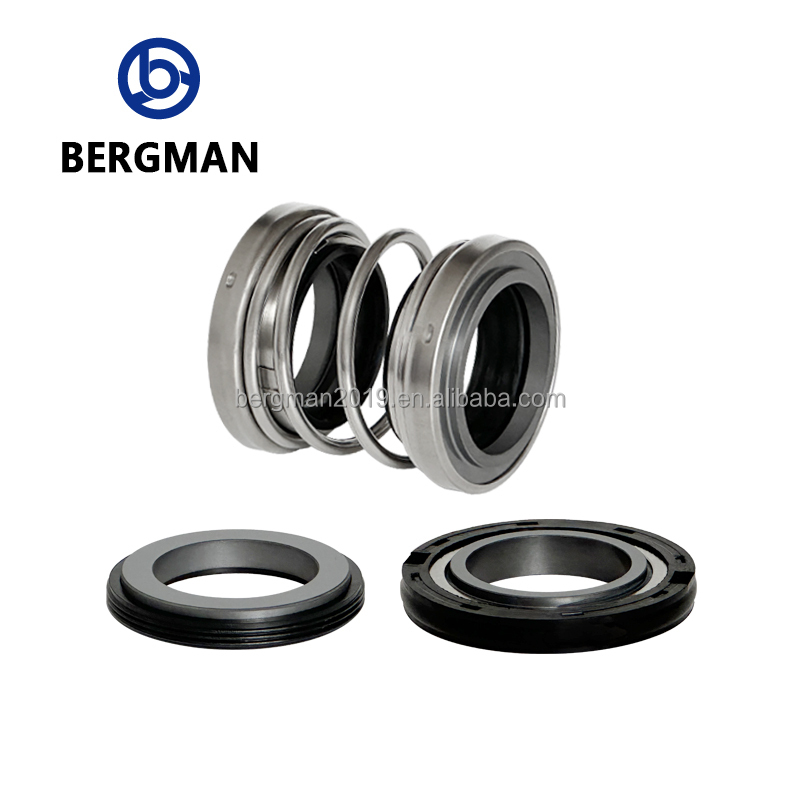

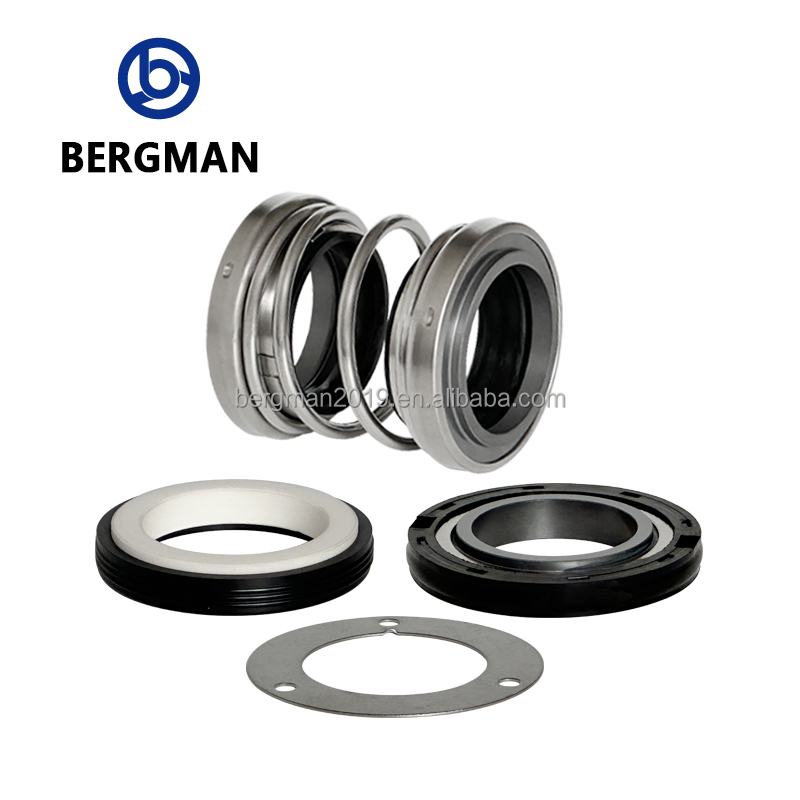

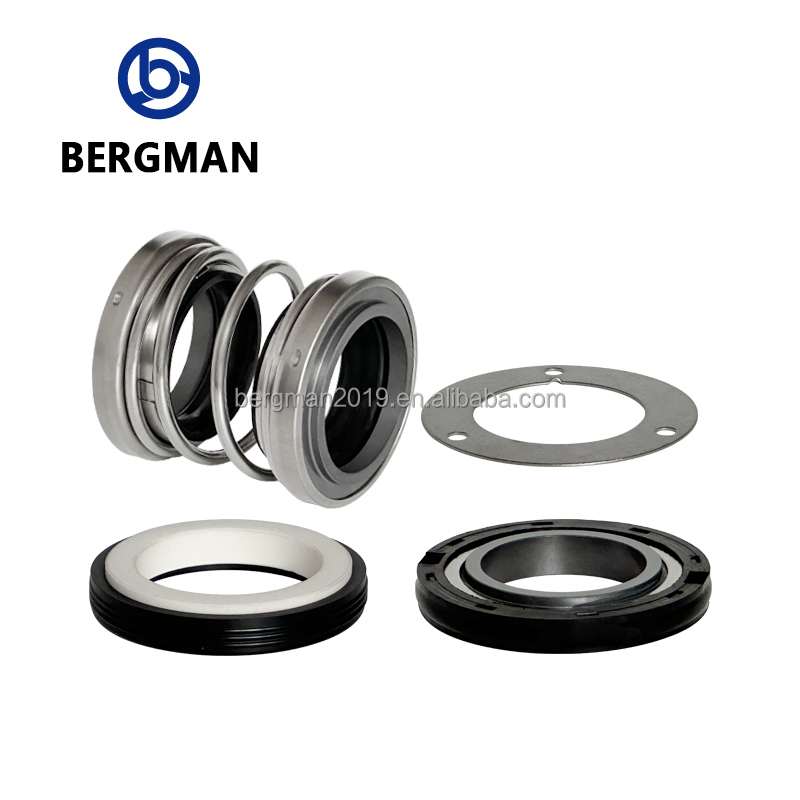

Product Images
Company Profile
Guangzhou Bogman Mechanical Seals Co., Ltd. (formerly Guangzhou Yongfa Mechanical Seals Co., Ltd.) has been manufacturing mechanical seals since 1996. With ISO9001:2015 certification, we specialize in:
- Pump mechanical seals
- Axial mechanical seals
- Fluid mechanical seals
- Metal bellows mechanical seals
- Various sealing materials including tungsten carbide, silicon carbide, and carbon graphite
Our Advantages
- 2,000+ square meter warehouse with large inventory
- Factory-direct pricing
- Fast delivery times
- OEM customization services
- Compatible with world-renowned brands including John Crane and AES
Frequently Asked Questions
Q: Are you a factory or a trader?
A: We are a production factory with our own international trade department.
Q: What is your delivery time?
A: Stock items ship immediately after payment. Custom items require 10-25 days depending on order quantity.
Q: Do you provide samples?
A: Samples are available at cost, refundable with order.
Contact Information
International Trade:
Li Wei: +86-15622176299
Yang Yingjie: WeChat/WhatsApp +86-15627223988
Yang Aijun: WeChat/WhatsApp +86-13602719849
Email: bergman168@outlook.com
